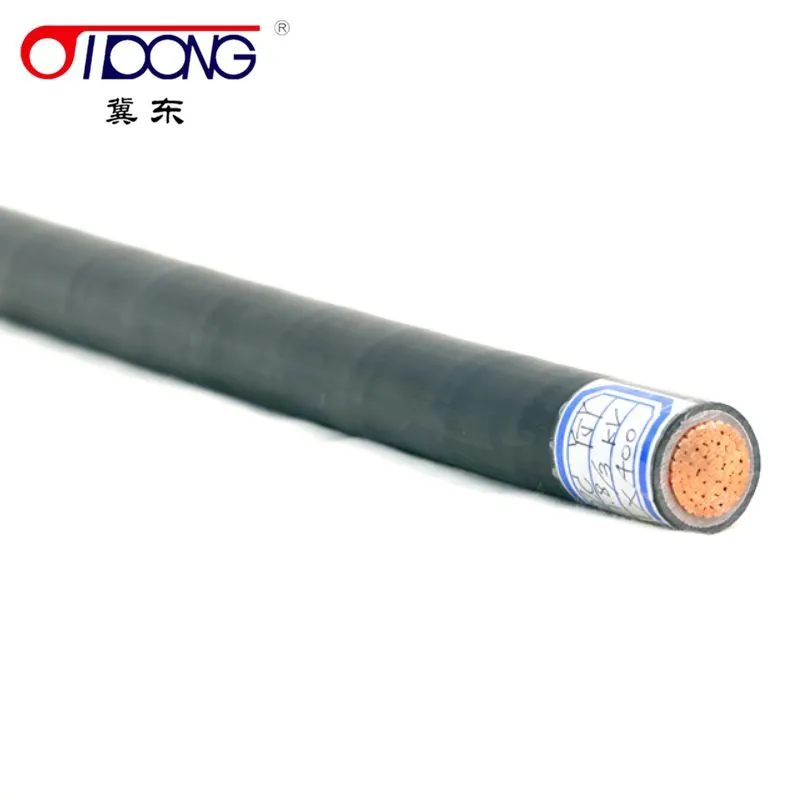

1.8/3.0kV LSZH Fire Retardant Power Cable

Application:

The cable is designed to be used for power supply in 1.8/3.0kV distribution power networks, coal/iron mining, industrial factories, in hospital / school / shopping center buildings and power stations. Fixed installation in the ground or in concrete, in the cable trenches or cable ducts, indoor or outdoor areas, in dry or wet locations.



Construction:

1. Conductor – Plain annealed class 2 stranded (compacted) Copper / Aluminium

2. Insulation – Polyvinyl chloride compound (PVC) / Cross-linked polyethylene compound (XLPE)

3. Filler – Non-hygroscopic material (PP)

4. Binder tape – Non-hygroscopic material tape

5. Armor: Unarmored / Steel tape armor(STA) / Steel wire armor(SWA) / Al wire armor(AWA)

6. Outer sheath – Polyvinyl chloride compound (PVC) / Polyethylene compound (XLPE) / LSZH-FR



Core & Cross Section:

1C 1.5~1C400mm²

2C 1.5~2C400mm²

3C 1.5~3C400mm²

4C 1.5~4C400mm²

5C 1.5~5C400mm²

2C+E2.5~2C+E400mm²

3C+E2.5~3C+E400mm²

4C+E2.5~4C+E400mm²



Temperature characteristics:

Conductor operating temperature: -15℃~90℃

Min. temperatrue laying condition: 0℃



Electrical Characteristics:

Rated voltage: 1.8/3.0(3.6) kV



Color:

Insulation: IEC 60502-1 / According to customer requirements

Outer sheath: Black / orange / according to customer requirements



Standard:

Cable design: IEC 60502-1 / AS/ZNS 5000.1 / As per customer specification

Conductor: IEC 60228 or AS/ZNS 1125 / As per customer specification
