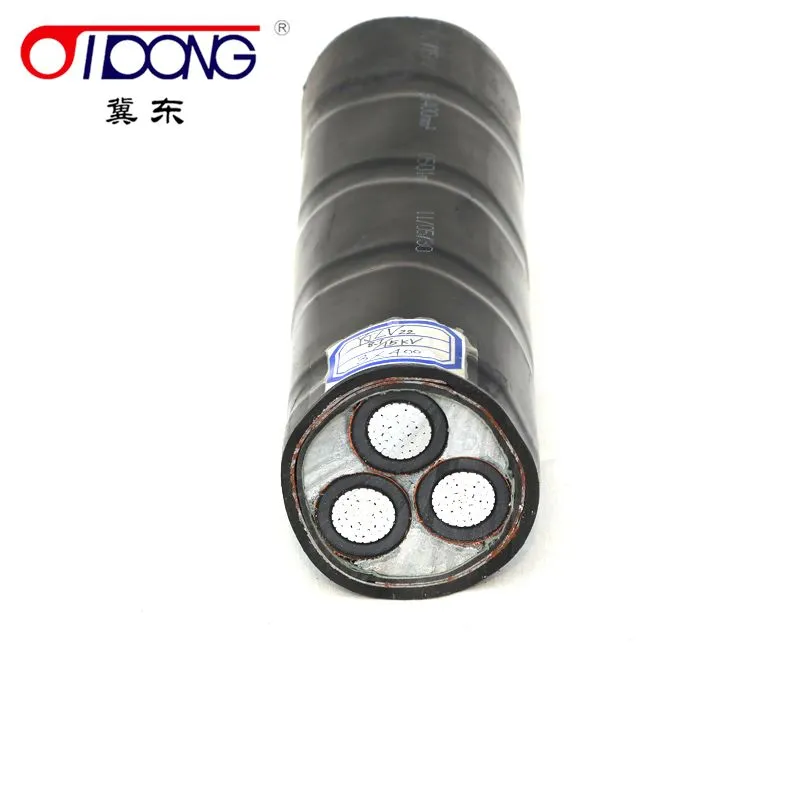

15kV XLPE Aluminium power cable (ZC-YJLV22)
To be used for power supply in 8.7/15KV distribution power networks, industrial factories, in buildings and power stations. Fixed installation in the ground or in concrete, in the cable trenches or cable ducts, indoor or outdoor areas, in dry or wet locations.
The 15kV Armored Aluminium power cable is used for power transmission and distributiion8.7/15KV electrical power network in industrial and residential areas.
The conductor of the cable are made of highly compacted Class 2 stranded bare aluminium wires. The highly compacted aluminium conductors are guatantee of low levels of electrical resistance. Additionally, the use of aluminium ensures a lighter-weight and cheaper price in comparision with copper cable types. Conductor sizes are usually optimized to carry the power without introducing temperature rise within the cable.
The cable core is covered in steel tape armor (STA) in consideration of the installation of buring underground. The STA offers increased protection against physical damage caused by impact, vibration and movement. It also protects the cable in the case of accidental short circuit.
The STA is protected by a fire retardant sheath. This extra protection is vital when the cable purpose is in essential services, as is the case of many industrial and residential applications. The sheath is engineered with flame-retardant materials, making sure the cable withstands fire risks, while reducing the amount of smoke, poisonous gases, and corrosive byproducts.
The 15kV power cable is a groundbreaking technology which offers a reliable and safe means for medium and high voltage electrical power transmission for a variety of industrial and residential applications. With its superior aluminium conducting cables, steel tape armoring and fire retardant sheathing this cable is the optimal choice for cost-efficient and safe electrical power handling.
